Best multiprocess welders, ranked by what they need from the wall
Six dual voltage multiprocess welders compared on published duty cycle, input amps and breaker. Most list 35 to 46 amps of input on a 120 volt outlet.
A multiprocess welder is one power source running mig, stick and tig, sometimes with a plasma cutter. (New to the names? See mig vs tig vs stick.) Every machine here is dual voltage, and every listing says it plugs into a household outlet. The manuals are more specific.
On 110 to 120 volts, five of these six machines list maximum input currents of 35 to 46 amps, and the sixth does not publish one. A household outlet supplies 15 or 20. They will run on that outlet at lower settings. None of the manuals publishes how much output you get before the breaker trips. To use what you paid for, plan on a 240 volt circuit, sized by a licensed electrician from the manual.
What each manual publishes
All figures are as published by the manufacturer, checked 2026-09-19. Mig ratings shown unless noted. “Not published” means we looked and the maker does not state it.
| Machine | Rated output, 240 V side | Minutes of arc per ten | Rated output, 120 V side | Max input amps, 120 V / 240 V | Breaker published | Duty cycle basis |
|---|---|---|---|---|---|---|
| YesWelder MIG-205DS | 205 A at 60 percent | 6 | 160 A at 60 percent | 43 / 34 | Not published | Not published |
| ARCCAPTAIN MIG200 | 60 percent, amperage on graph only | 6 | 60 percent, amperage on graph only | 44.2 / 30.9 (rated input) | Over 50 A | IEC 60974-1 named |
| YesWelder MCT-520 | 200 A at 60 percent | 6 | 130 A at 60 percent | 37 / 41 | Not published | Not published |
| YesWelder MIG-250 PRO | 250 A at 60 percent | 6 | 175 A at 60 percent | Not published / 34 | 50 A time-delay (220 V version manual) | Not published |
| Weldpro MIG210LCD | 200 A at 30 percent | 3 | 120 A at 30 percent | 35.7 / 35.7 (rated input, unlabeled) | Not published | Not published |
| ARCCAPTAIN MIG205MP | 205 A at 60 percent (tig and stick; mig not published) | 6 | 140 A at 60 percent (tig and stick) | 46 / 35.6 | 50 A branch circuit | IEC 60974-1 named |
Wire gauge and generator size are not published for any of the six. Plasma air: MCT-520, 2.8 to 3.5 CFM on the product page, with pressure stated as 45 to 70 PSI there and 50 to 60 PSI on the setting chart. MIG205MP, pressure only, and its manual gives two different maximums.
Sources: YesWelder MIG-250PRO manual, MIG-205DS PRO manual and MCT520 manual; ARCCAPTAIN MIG200 manual and MIG205MP manual; Weldpro spec sheet and manual.
These rows, plus Hobart and Lincoln machines for reference, are in the full welder comparison table.
Start with the input column
Minutes of arc per ten is duty cycle times ten. Duty cycle is the share of a ten minute window a machine can weld before it must cool. Five of these claim 60 percent at full output, double what Hobart and Lincoln publish. We print the claim and mark the basis. Only ArcCaptain names the standard.
Max input amps is what your circuit has to supply while the arc is on. The gap between I1max and the lower I1eff is explained in welder amp draw.
Breaker published matters because without it, your electrician has to work from the nameplate alone. See what size breaker a welder needs.
Both budget brands have their own pages: YesWelder and ArcCaptain.
Who should buy which
If you have or will add a 240 volt circuit and mostly mig weld, the MIG-205DS gives the most published capability for the least money. If you want a breaker figure in writing, the ARCCAPTAIN MIG200. If you want the most mig output and already have 240 volts, the MIG-250 PRO. If you cut plate and own a compressor, the MCT-520 (standalone machines: best plasma cutters). If a written three year warranty matters more than arc time, the Weldpro.
If this is your first welder and you have only household outlets, read best welder for beginners first.
We score from published specs and owner reports. We do not bench-test, and a spec table says nothing about whether a weld will hold. Structural and pressure work belongs to a certified welder.
How we score
Every pick is scored on the same five criteria. We work from published specs, not from bench tests: every figure comes from the manufacturer’s manual, spec sheet or current listing at write time, with the model number and the date checked. We never estimate a number a manufacturer does not publish.
Specs published
Whether the manufacturer publishes what a buyer needs: duty cycle at a stated amperage, input amp draw, and the breaker the machine requires. A missing number costs points and is marked "Not published".
Arc time
Duty cycle (the share of a ten minute window a machine can weld before it must cool, rated at 104 F under IEC 60974-1) converted into minutes of arc per ten at a working amperage.
Build & parts
Wire drive, torch and leads, and whether consumables and spare parts are easy to buy. Owner reports are attributed to their source and never presented as our testing.
Power fit
Input voltage options and amp draw set against the circuits a home garage usually has. The work of adding a circuit belongs to a licensed electrician.
Value & warranty
What you get for the price, weighted by warranty length and how the brand handles service and parts.
Price bands, relative to the picks on this page: $ budget · $$ mid-range · $$$ premium · $$$$ top shelf. Amazon prices move constantly, so we show bands rather than dollar amounts; each button shows the live price.
Best overall for a home garage
YesWelder MIG-205DS
The lowest priced machine here publishes more than most: duty cycle at a stated amperage and voltage for every process, plus both nameplate input currents. Mig is rated 205 amps at 60 percent on 220 volts and 160 amps at 60 percent on 110. The input side is the catch. The manual lists a maximum input of 43 amps on 110 volts and 34 on 220, with no breaker recommendation. Two versions exist, the original and the PRO. Their mig and input figures match, and their stick and tig limits differ, so check which one the listing ships.
Pros
- Duty cycle published with amperage and voltage for mig, stick and tig
- I1max and I1eff both published, at both voltages
- Long-running model with a deep owner base
Cons
- 43 A maximum input on 110 V is far beyond a household outlet
- No breaker, wire gauge or generator guidance published
- Duty cycle temperature basis not published
Best published breaker guidance on a budget

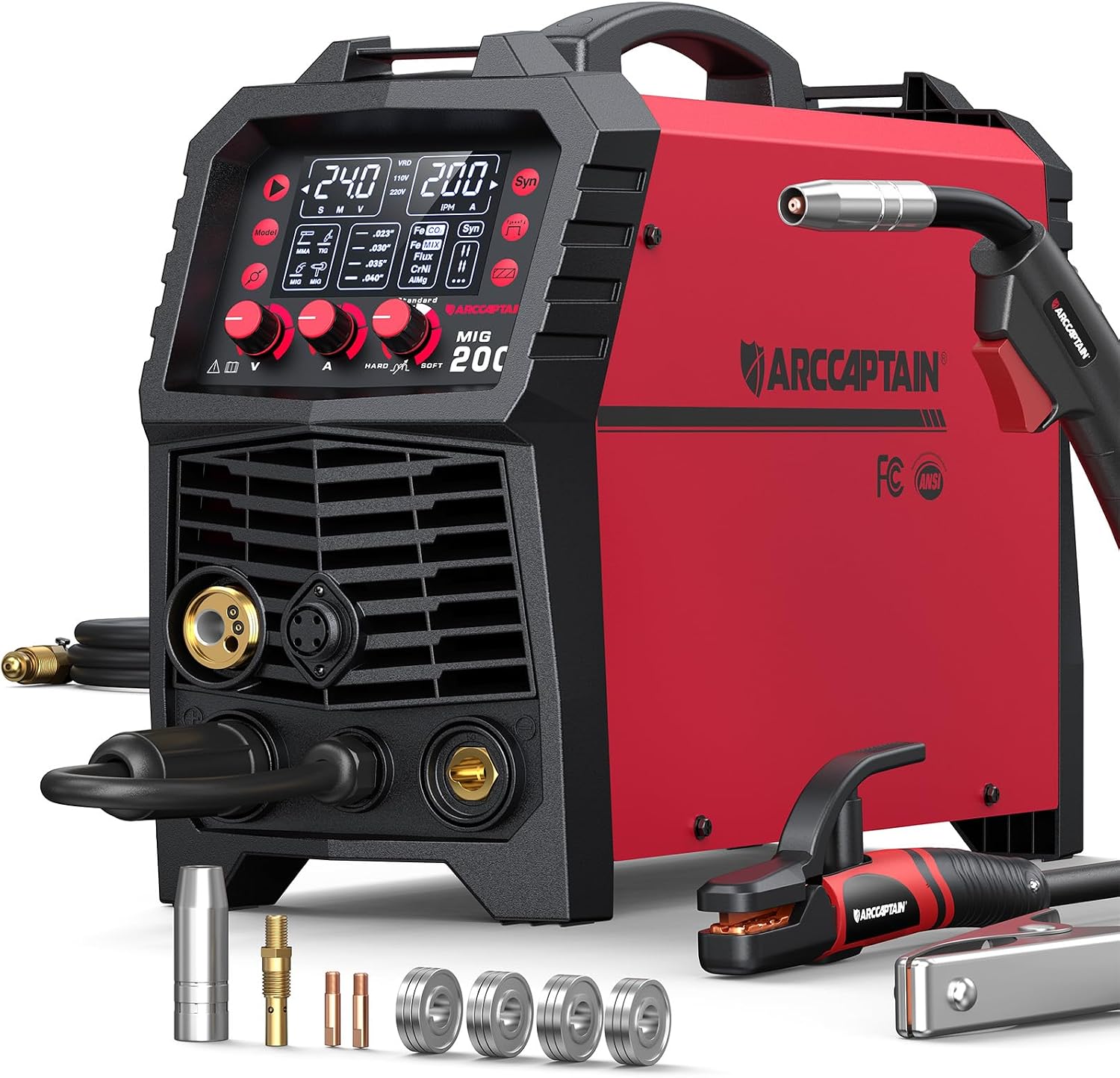

ARCCAPTAIN MIG200
ArcCaptain is the only budget brand here that prints a breaker figure: its MIG200 manual recommends a breaker over 50 amps. Rated input current is 44.2 amps on 110 volts and 30.9 on 220. The spec table names IEC 60974-1 and gives a 60 percent duty cycle, but the amperage behind it appears only as a curve on a graph, so the exact figure is not published. Mig runs 30 to 160 amps on 110 volts and 30 to 200 on 220.
Pros
- Breaker recommendation published in the manual
- Names IEC 60974-1 in its spec table
- Two year warranty stated on the product page
Cons
- Duty cycle amperage shown only as a graph
- I1max and I1eff not split out
- 44.2 A rated input on 110 V
Best welder and plasma cutter combo

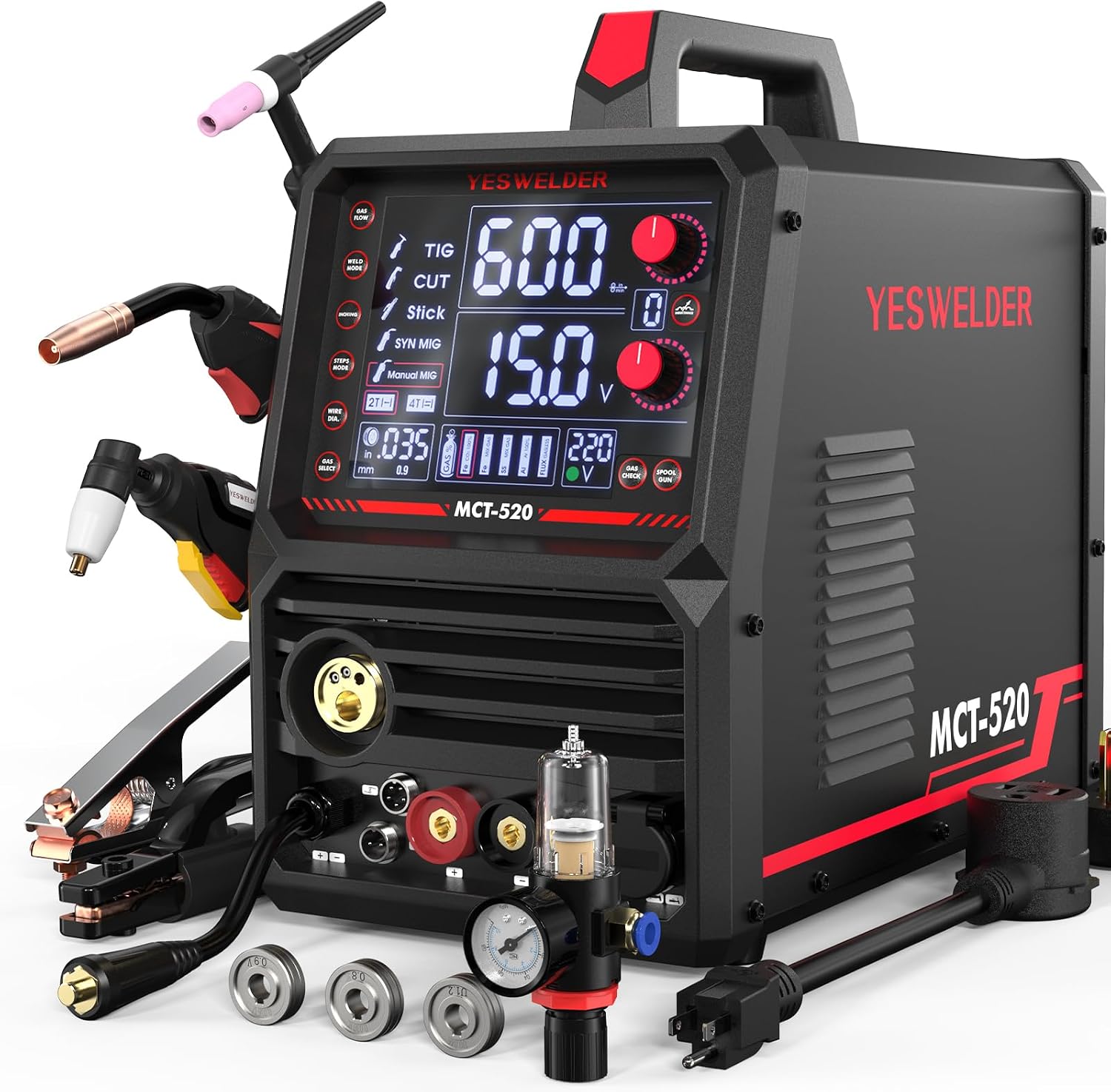

YesWelder MCT-520
Mig, high frequency tig, stick and a 50 amp plasma cutter in one case. The manual publishes I1max and I1eff for every process at both voltages, which is rare: mig is 37 amps maximum on 110 volts and 41 on 220. All processes are rated at 60 percent at full output. The plasma figures need care. YesWelder's product page and its own setting chart disagree, so we print the lower ones: clean cut of 8 mm on 110 volts and 12 mm on 220. Air flow is 2.8 to 3.5 CFM on the page only.
Pros
- Input currents published per process and per voltage
- Clean cut, sever cut and CFM all published somewhere
- High frequency tig start
Cons
- Maker's own documents conflict on cut thickness and air pressure
- Stick draws 45 A maximum on 110 V
- No breaker guidance; newer model with a shorter owner record
Most mig output for a 240 volt garage

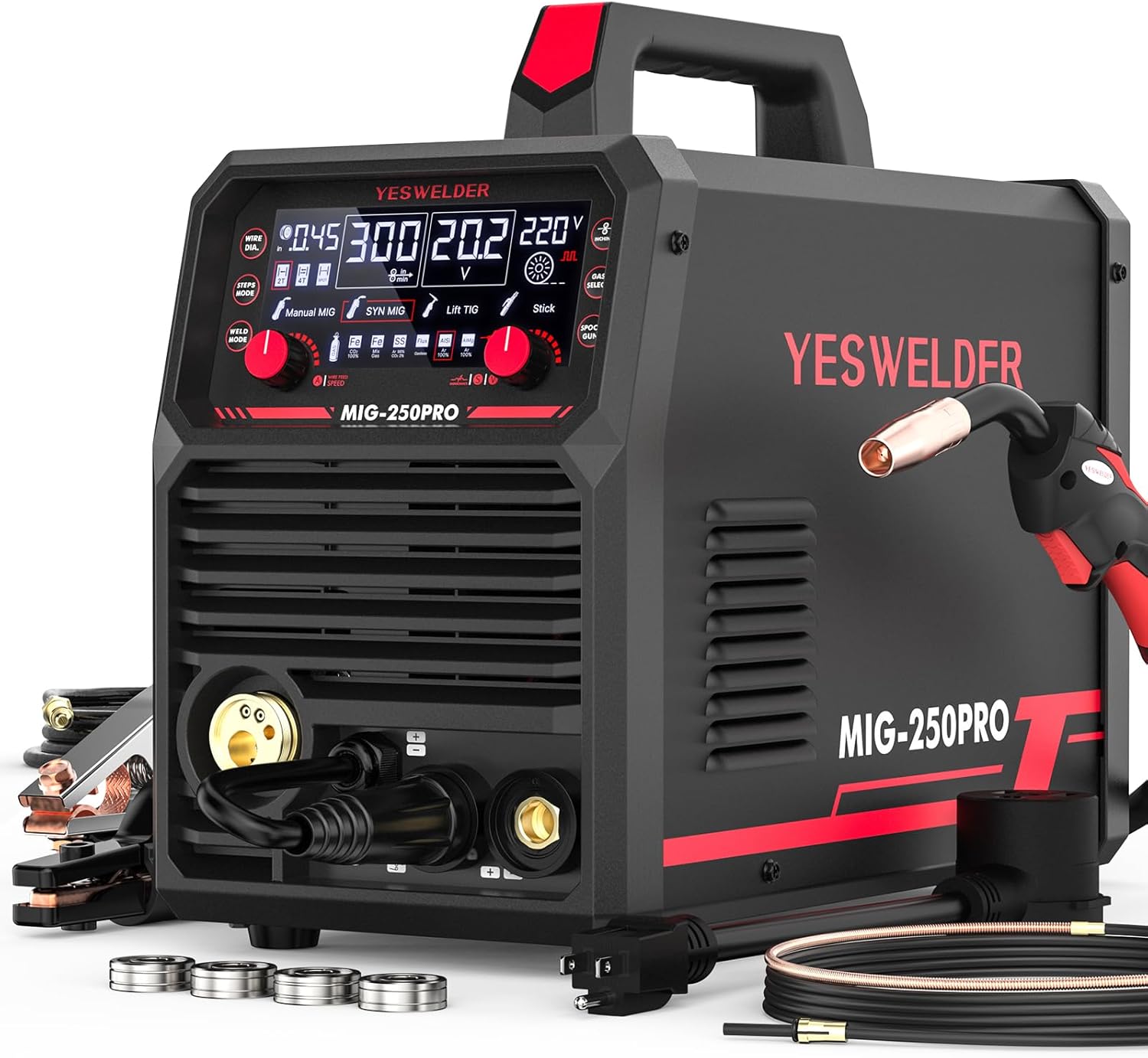

YesWelder MIG-250 PRO
The biggest mig rating here: 250 amps at 60 percent on 220 volts, with pulsed mig, stick, lift tig and spool gun support. It ranks below its smaller sibling because the paperwork has a hole in it. The only manual YesWelder links is for an older 220 volt only version, which lists a 34 amp maximum input and a 50 amp time-delay breaker. The machine sold today also runs on 110 volts, rated 175 amps at 60 percent, and its input current on that voltage is not published. Buy it for a 240 volt circuit.
Pros
- 250 A at 60 percent on 220 V, the highest mig rating on this page
- A breaker figure is published for the 220 V version
- Pulsed mig and spool gun support
Cons
- 110 V input current not published
- Linked manual describes a different version of the machine
- Lift tig only, with no high frequency start
Longest warranty

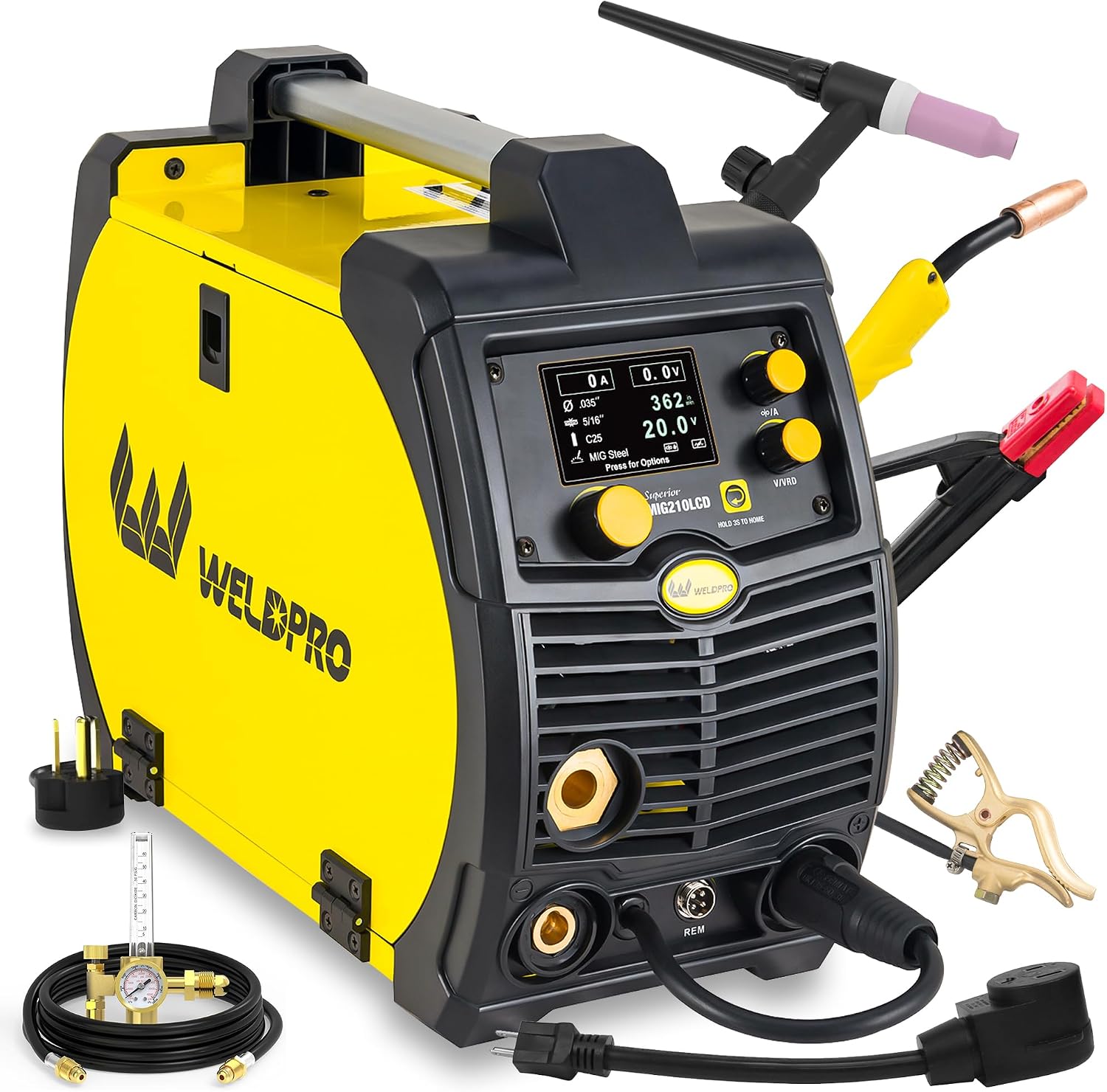

Weldpro MIG210LCD
Weldpro publishes a proper spec sheet. Every process is rated 200 amps at 30 percent on 230 volts and 120 amps at 30 percent on 115, which is three minutes of arc per ten and half the figure its rivals claim. The sheet lists an effective input current of 24.3 amps on 115 volts and 23 on 230, while the manual lists an unlabeled rated input of 35.7 amps for mig. It carries a three year warranty, the longest stated here. The spec sheet title says 210 amps and its own table stops at 200.
Pros
- Spec sheet with duty cycle at stated amperage per voltage
- Three year power source warranty in writing
- Effective input current published
Cons
- 30 percent duty cycle at rated output
- Manual and spec sheet list different input figures
- No breaker or wire guidance
Most complete electrical spec

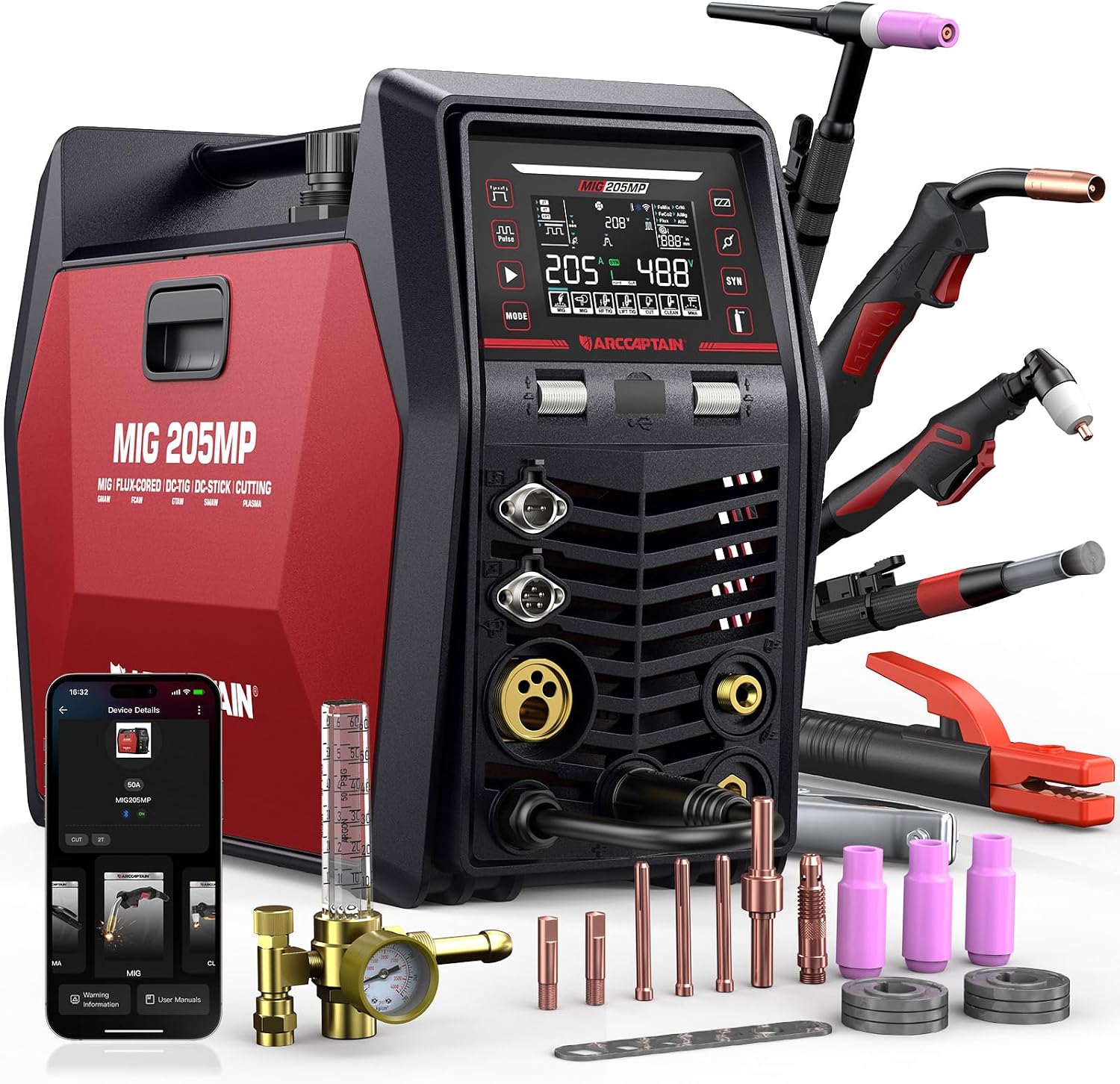

ARCCAPTAIN MIG205MP
The manual is the most candid in the group about power. It prints I1max of 46 amps and I1eff of 20.5 on 120 volts, 35.6 and 15.5 on 240, and says to connect the machine to a 50 amp branch circuit with a delayed action breaker. Tig and stick are rated 205 amps at 60 percent on 240 volts. The nameplate figure has no mig block, so mig duty cycle is not published. The plasma side publishes pressure and a cutting speed chart, and no rated cut thickness or CFM.
Pros
- I1max, I1eff and a 50 A circuit requirement all published
- Names IEC 60974-1
- Nine modes including high frequency tig and plasma
Cons
- 46 A maximum input on 120 V, the highest here
- No mig duty cycle, cut thickness or CFM published
- Warranty stated as three years on the site and two in the manual
Also worth considering
Strong, well-reviewed products that just missed our ranked list - worth a look if the picks above aren't quite right for you.
- Miller Multimatic 215 PRO - The premium name in this class, priced several times the picks above. Too few Amazon reviews to rank yet.
- Eastwood Elite MP200i DC - Dual voltage mig, high frequency tig and stick from a US tool retailer. Not enough reviews on this listing to rank.
Frequently asked questions
What is a multiprocess welder?
One power source that can run more than one welding process, usually mig (wire fed from a spool), stick (a consumable rod) and tig (a tungsten electrode with separate filler). Some add a plasma cutter. You still need the right torch, gas and consumables for each process, and tig torches are often sold separately.
Can I run a 200 amp multiprocess welder on a normal outlet?
At low settings, often. At full 120 volt output, the manuals say otherwise. Five of the six machines here list maximum input currents of 35 to 46 amps on 110 to 120 volts, and ArcCaptain asks for a 50 amp branch circuit. A household outlet is 15 or 20 amps. None of the manuals publishes what output is available on a 20 amp circuit.
Is a 60 percent duty cycle on a budget welder believable?
It is what the manufacturer publishes, and we print it as published. What is missing is the basis. IEC 60974-1 rates duty cycle at 40 C (104 F). ArcCaptain names that standard in its spec table. YesWelder and Weldpro give an operating range up to 40 C without tying the duty cycle to it, so we mark their rating basis as not published.
Do I need a welder with a plasma cutter built in?
Only if you will cut plate often and already own a compressor. The plasma side needs compressed air, and YesWelder's page lists 2.8 to 3.5 CFM for the MCT-520. ArcCaptain publishes pressure but no air flow figure for the MIG205MP, and neither maker's manual gives a rated cut thickness.
