PrimeWeld TIG225X vs ARCCAPTAIN TIG200P AC/DC: circuit, arc time and support
Two budget AC/DC tig welders for aluminum, compared on published input current, breaker, duty cycle and who pays shipping on a warranty claim.
Aluminum needs a tig welder with AC output, and that rules out most budget machines. These two are the budget AC/DC tig welders that we could both confirm as buyable and match to the maker’s own manual.
Buy the PrimeWeld TIG225X unless weight or price decides it for you. It publishes the circuit it needs for each voltage, gives duty cycle at three amperages, includes the pedal, and covers shipping both ways under warranty. The ARCCAPTAIN is lighter and cheaper, asks for a 60 amp breaker, and leaves more of its numbers unpublished.
Side by side, from the two manuals
Checked 2026-09-21. “Not published” means we looked in the maker’s manual, product page and policy pages and did not find it.
| PrimeWeld TIG225X | ARCCAPTAIN TIG200P AC/DC | |
|---|---|---|
| Tig output, 220 V | 10 to 225 A | 10 to 200 A |
| Tig output, 110 V | Rated 140 A | 10 to 120 A |
| Tig duty cycle, 220 V | 225 A at 40 percent, 183 A at 60, 155 A at 100 | 200 A at 25 percent |
| Minutes of arc per ten at full output | 4 | 2.5 |
| Tig duty cycle, 110 V | 140 A at 40 percent, 124 A at 60, 108 A at 100 | Not published |
| Duty cycle basis | 25 C | Not tied to a temperature |
| Rated input, tig | 33.3 A on 220 V, 34 A on 110 V | 33 A, not split by voltage |
| Rated input, stick | 38.1 A on 220 V, 46.3 A on 110 V | 35 A |
| Breaker | 50 A on 220 V, 30 A on 110 V | No less than 60 A |
| AC frequency | 40 to 200 Hz | 20 to 250 Hz |
| AC balance | 10 to 90 percent | 20 to 60 percent |
| Pulse | 0.5 to 200 Hz | 0.5 to 200 Hz DC, 0.5 to 25 Hz AC |
| Arc start | High frequency; lift added in the 2026 update | High frequency; lift mentioned in the manual text |
| Torch | CK Worldwide, chosen at purchase | WP-26 style, 13 ft |
| Foot pedal | Included | Not in the base unit |
| Weight | 41 lb | 26.5 lb |
| Warranty | 3 years; shipping both ways covered in the continental US | 5 years (product page) or 3 (policy page); buyer pays freight |
| Wire gauge, generator size | Not published | 2.5 mm2 cable; generator not published |
Sources: PrimeWeld TIG225X manual and warranty FAQ; ARCCAPTAIN TIG200PACDC manual and warranty policy.
What the circuit rows mean at your panel
Both machines draw about 33 amps for tig at full output, and both makers ask for a breaker well above that: 50 amps for the PrimeWeld on 220 volts, 60 for the ARCCAPTAIN. Welder circuits are sized from the nameplate and the duty cycle under their own article of the electrical code, which is why the breaker is larger than the running current. That is a licensed electrician’s decision. What to take to them is in what size breaker a welder needs, and whether your panel has room is covered in can my panel handle a welder.
Stick mode draws more than tig on both. If you will also stick weld, plan the circuit for that figure.
Arc time on a real job
Tig welds tend to be long and continuous, so duty cycle matters more here than for short mig welds. At full output the PrimeWeld gives four minutes in ten and the ARCCAPTAIN two and a half. Most aluminum work in a home shop runs well below full output, and only PrimeWeld tells you what you get there: 183 amps at 60 percent. With the ARCCAPTAIN you have one number and have to find the rest by running into the thermal light.
Neither maker rates at 40 C. A hot garage shortens both.
The warranty row
A welder that fails in year two has to go somewhere. PrimeWeld says parts, labor and shipping to and from its New Jersey base are covered for three years in the continental US. ARCCAPTAIN’s policy says the buyer is responsible for shipment to and from the seller’s warehouse or service facility, and its two pages disagree on whether the term is five years or three. Keep a copy of whichever page you bought under.
More on each company: PrimeWeld and ArcCaptain. If the features in the table are unfamiliar, start with tig welders explained. Nothing here says a weld will hold a load. Structural and pressure work belongs to a certified welder.
How we score
Every pick is scored on the same five criteria. We work from published specs, not from bench tests: every figure comes from the manufacturer’s manual, spec sheet or current listing at write time, with the model number and the date checked. We never estimate a number a manufacturer does not publish.
Specs published
Whether the manufacturer publishes what a buyer needs: duty cycle at a stated amperage, input amp draw, and the breaker the machine requires. A missing number costs points and is marked "Not published".
Arc time
Duty cycle (the share of a ten minute window a machine can weld before it must cool, rated at 104 F under IEC 60974-1) converted into minutes of arc per ten at a working amperage.
Build & parts
Wire drive, torch and leads, and whether consumables and spare parts are easy to buy. Owner reports are attributed to their source and never presented as our testing.
Power fit
Input voltage options and amp draw set against the circuits a home garage usually has. The work of adding a circuit belongs to a licensed electrician.
Value & warranty
What you get for the price, weighted by warranty length and how the brand handles service and parts.
Price bands, relative to the picks on this page: $ budget · $$ mid-range · $$$ premium · $$$$ top shelf. Amazon prices move constantly, so we show bands rather than dollar amounts; each button shows the live price.
Better documented, better supported
PrimeWeld TIG225X
PrimeWeld's manual gives what an electrician needs: rated input of 33.3 amps for tig on 220 volts with a 50 amp breaker, and 34 amps on 110 with a 30 amp breaker. Duty cycle is published at three points for each voltage: on 220 volts, 225 amps at 40 percent, 183 at 60 and 155 at 100. Those are rated at 25 C, not the 40 C of the international standard, so treat them as optimistic next to a Lincoln or Miller figure. It ships with a CK Worldwide torch and a foot pedal. The three year warranty covers parts, labor and shipping both ways within the continental US, from a company with a New Jersey address and US-based support.
Pros
- Input current and breaker published for both voltages
- Duty cycle at three points per voltage
- Warranty covers shipping both ways; CK torch and pedal included
Cons
- Duty cycle rated at 25 C
- Wire gauge and generator size not published
- 41 lb, the heavier of the two
Cheaper and lighter, with thinner paperwork

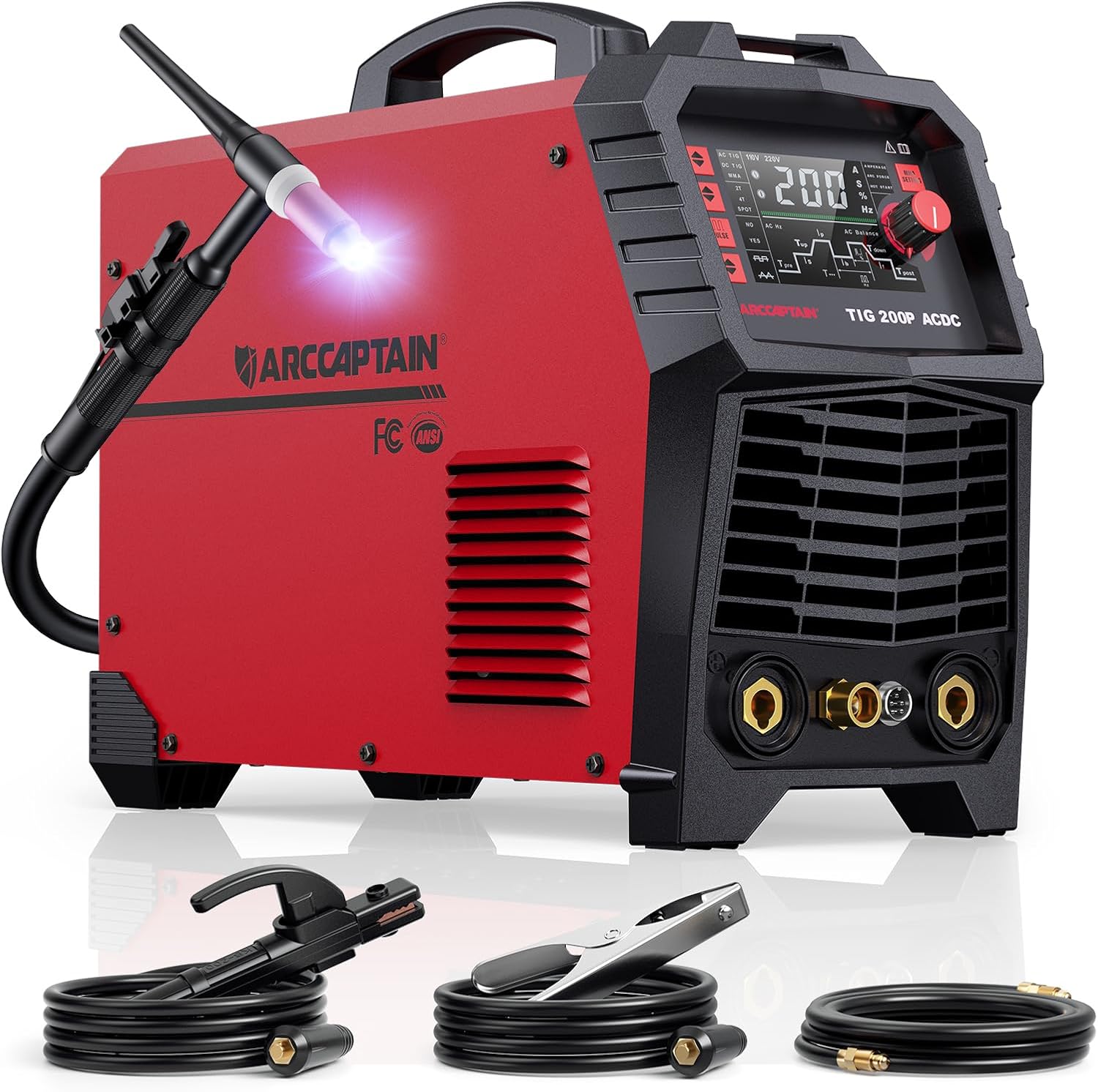

ARCCAPTAIN TIG200P AC/DC
At 26.5 pounds it is far easier to carry, and its AC controls have wider ranges. The published duty cycle is a single point: 200 amps at 25 percent for tig, two and a half minutes of arc in ten, with no figure for 110 volts and no lower-amperage points. The manual asks for a breaker or fuse of no less than 60 amps and 2.5 square millimetre cable, without splitting that by voltage. Rated input is 33 amps for tig. The warranty is five years on the product page and three on the warranty policy page, and the policy says the buyer pays shipping to and from the service facility. No foot pedal in the base unit.
Pros
- 26.5 lb; AC frequency adjustable from 20 to 250 Hz
- A breaker and cable figure is published
- Lower price band
Cons
- One duty cycle point, 25 percent at 200 A, and none for 110 V
- Warranty stated as five years and as three; buyer pays freight both ways
- Foot pedal not included; input current not split by voltage
Frequently asked questions
Can either welder run on a 120 volt household outlet?
Both will start on one, at reduced output. PrimeWeld lists 34 amps of rated input for tig on 110 volts and a 30 amp breaker, for 140 amps of output. ArcCaptain lists 120 amps of tig output on 110 volts and does not split its input current or breaker by voltage. A household circuit supplies 15 or 20 amps, so plan on 240 volts for aluminum.
Do these welders come with a foot pedal?
The PrimeWeld does. Its manual lists a foot pedal amperage controller in the box. The ArcCaptain does not include one in the base unit. ArcCaptain sells a welder and pedal bundle, so check which version a listing ships.
Which one is better for aluminum?
Both output AC with adjustable frequency and balance, which is what aluminum needs. ArcCaptain's ranges are wider on paper, 20 to 250 hertz against 40 to 200. PrimeWeld's duty cycle is higher at comparable output and it is rated to 225 amps against 200. Neither figure tells you how a weld will turn out. That depends on the operator.
